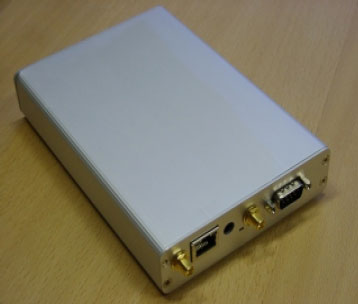

CTFDVR-2 (Mobile DVR, Fanless) [Availability on request]

PRODUCT IS CURRENTLY NOT AVAILABLE !
CTFDVR-2 (Mobile DVR, Fanless) [<b>Availability on request</b>]
  • Mobile DVR
  • FANLESS !
  • Standalone !

- Digital high end Multiplex rekorder 802.15.4 wireless coordinator
- GPRS Backup optional (=redundancy)
- Recording with up to 2 cameras on 4 GB CF card, longterm- motion-detected or data controlled recording
- fast picture searching without stopping recording
- simple user interface with Internet browser
- Remote control over network, WLAN, DSL
- Alert interface with 2 contact inputs, MMS / e-mail alerr
- Interface for speedometer, USV integrated


Technical data :

Share

1479.00 EUR
incl. 19% VAT, plus shipping
Product currently unavailable. We check availability again when ordering.
Add to cart
Video input 2 x 1 Vss, (F)BAS, 75 Ohm, BNC
Recording speed 8 half-pictures / sec.
Picture signature Water sign in picture
Resolution 736x288 pixels
Digitizing method JPEG
Video signal loss detection Automatic
Memory 3 GB CF card with ring structure
Sequence recording For each camera the recording times, picture size, picture quality, pic/sec can be changed. In long-term archive you can choose motion-detectionable or permanent recording. In alter archive, selected events pictures get saved with creation date. The date is helpful for searching.
Alerting Automatic alter by e-mail, phone, MMS for multi-users. Redudant altering by using GSM net (optional)
Protection against unauthorized usage Passwords / User management with 4 levels, up to 32 users
Available menu languages German, english, portugiese, turkish
Available network options DSL – Internet, Network with 1 x Fast Ethernet 10/100 Base-T
Additional interfaces 1 * RS 232 for cashpoint, ATM or speedometer, 802.15.4 coordinator
Inputs 2 contact inputs with potential free contact useable
Power 7 – 20 Volt DC, USV internal, external Multinorm- power supply
Power consumption 10 watts
Operating temperature +0°C to +60°C
Enclosure Aluminium
Color metallic / grey
Dimension (HxWxD) 30 x 113 x 163 mm
Weight approx 0,5 kg
Scope of supply Main device, TP-network cable, power supply, radio antennas, CD-ROM with documentation
Certificates Fiducia, IZB-Soft, TÜV, UVV-Kassen + EN 50081-1_1992, EN 50082-2:1995, EN 55022 Klasse B: 1994 & EN 55022 / A1:1995, EN 61000-4-3:1996, ENV 50204:1995, EN 61000-4-2:1995, EN 61000-4-4:1995, ENV 50141:1993 (EN 61000-4-6), CRT 3 (Com. Dec.97/346/EC of 20.5.98)
Data sheet Download (PDF)
Data sheet Print view
